SeaStar BayStar Hydraulic Steering Kit w/o Tube
SeaStar BayStar Hydraulic Steering Kit w/o Tube
SeaStar BayStar Hydraulic Steering Kit w/o Tube
If you are noticing issues with your steering, and it is harder to maneuver, it may be time to repair your hydraulic steering system. When it comes to repairing or upgrading your steering systems, the Baystar Hydraulic Steering kit has everything you need. This kit is ISO compliant and manufactured with only the highest quality materials.
The Baystar Hydraulic Steering kit is designed with a low-friction helm, compact balanced cylinder and comes with hydraulic oil, tubing, and filler kit. It is a perfect choice for smaller motor wells. The Baystar steering kit is rated for single outboard engines up to 150HP with ABYC standard engine tilt tubes. It is not designed for faster, higher-performance boats.
NOTE: BayStar is not intended for high speed, high performance type boats, such as bass boats.
Features:
- Patented No Feedback Steering lock valves
- 5 Turns lock-tolock
- Fixed cylinder
- Use with SeaStar hose (sold separately)
- BayStar hydraulic tubing cut to suit application
- Requires 3" cut-out hole in dash
- Requires 21" splashwell width

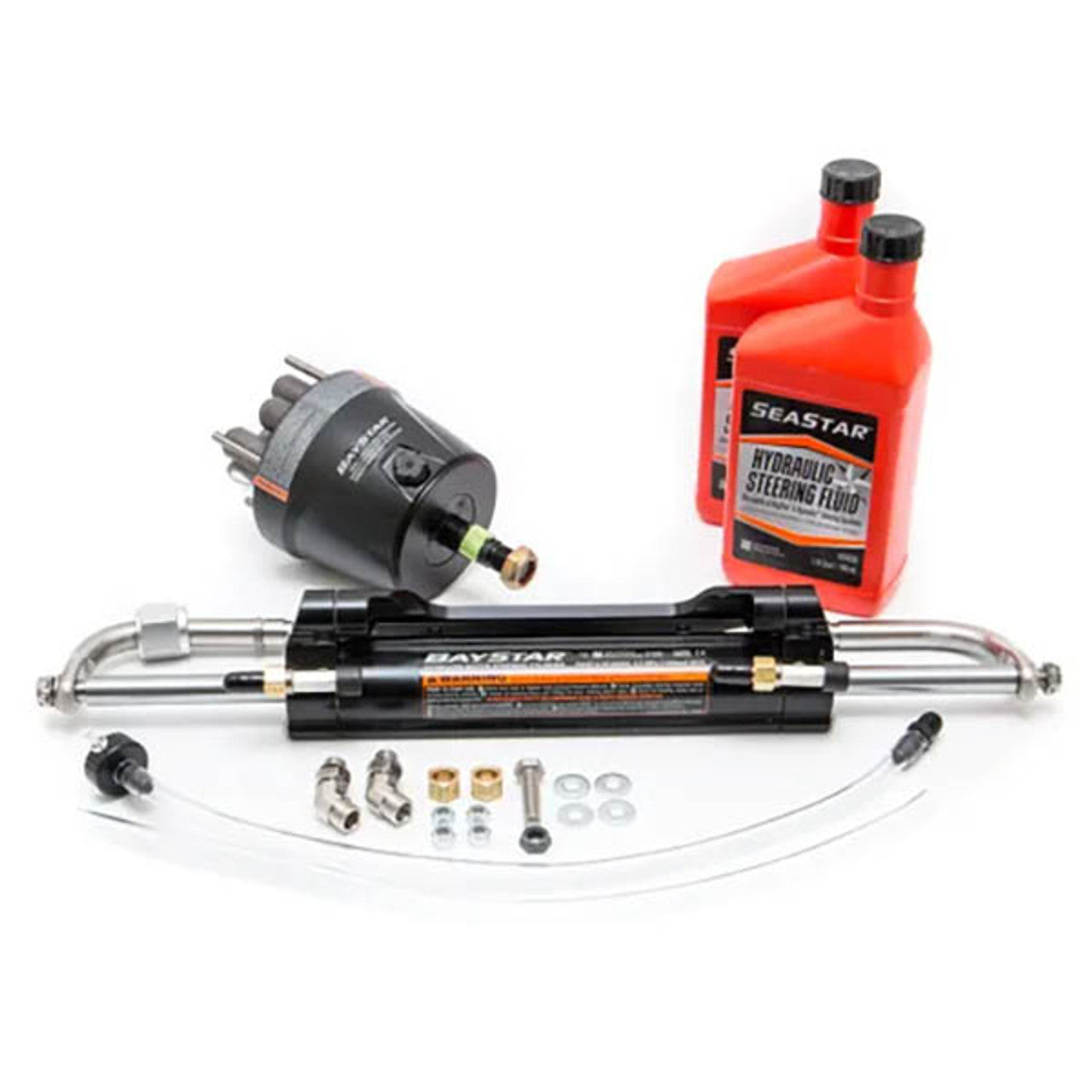

BayStar Steering Kit HK4300A-3 Includes:
- (1) HA5438 Helm Fill Kit
- (2) HA5430H 1qt Hydraulic Steering Fluid
- (1) HH4314-3 Baystar Helm 1.4 Front Mount Orb
- (1) HC4645-3 BC Cylinder Compact Orb
Note: This kit does not include hoses or tubes. You are able to choose a SeaStar hose kit that fits your desired length.
Application Chart:
| Manufacturer | Year | Model |
| Force | 1985 - Current | 90-150 HP |
| Honda | 1992 - Current | 30-90 HP |
| 2001 - Current | 150 HP | |
| 2003 - Current | BF 135 HP | |
| 2010 - Current | 115-150 HP | |
| Johnson/Evinrude | 1991 - Current | 40-150 HP |
| 1997 - Current | 75-150 HP FICHT | |
| Mercury/Mariner | 1984 - Current | 75-150 HP |
| Nissan | 1990 - Current | 120-140 HP |
| Suzuki | 1986 - Current | 150 HP |
| 1987 - 2002 | 115-140 HP* | |
| 1990 - 2002 | 90-100 HP | |
| 1998 - Current | 40-70 HP 4-Stroke* | |
| Tohatsu | 1990 - Current | 40-140 HP |
| Yamaha | 1998 - Current | 40-50 HP* |
| 1998 - Current | 60 HP* | |
| 1986 - Current | 70-90 HP* | |
| 1997 - Current | 80-150 HP 4-Stroke | |
| 2014 - Current | 115B 4-Stroke | |
| Yanmar | 1990 - Current | 27-36 HP |
*Applications with an asterisk may require a spacer kit or for the engine clamp brackets to be cut or ground. Please refer to the Owners Manual linked below for more information regarding these specific applications.
Click to Download Teleflex Baystar Hydraulic Steering Kit Owners Manual/Installation Instructions
