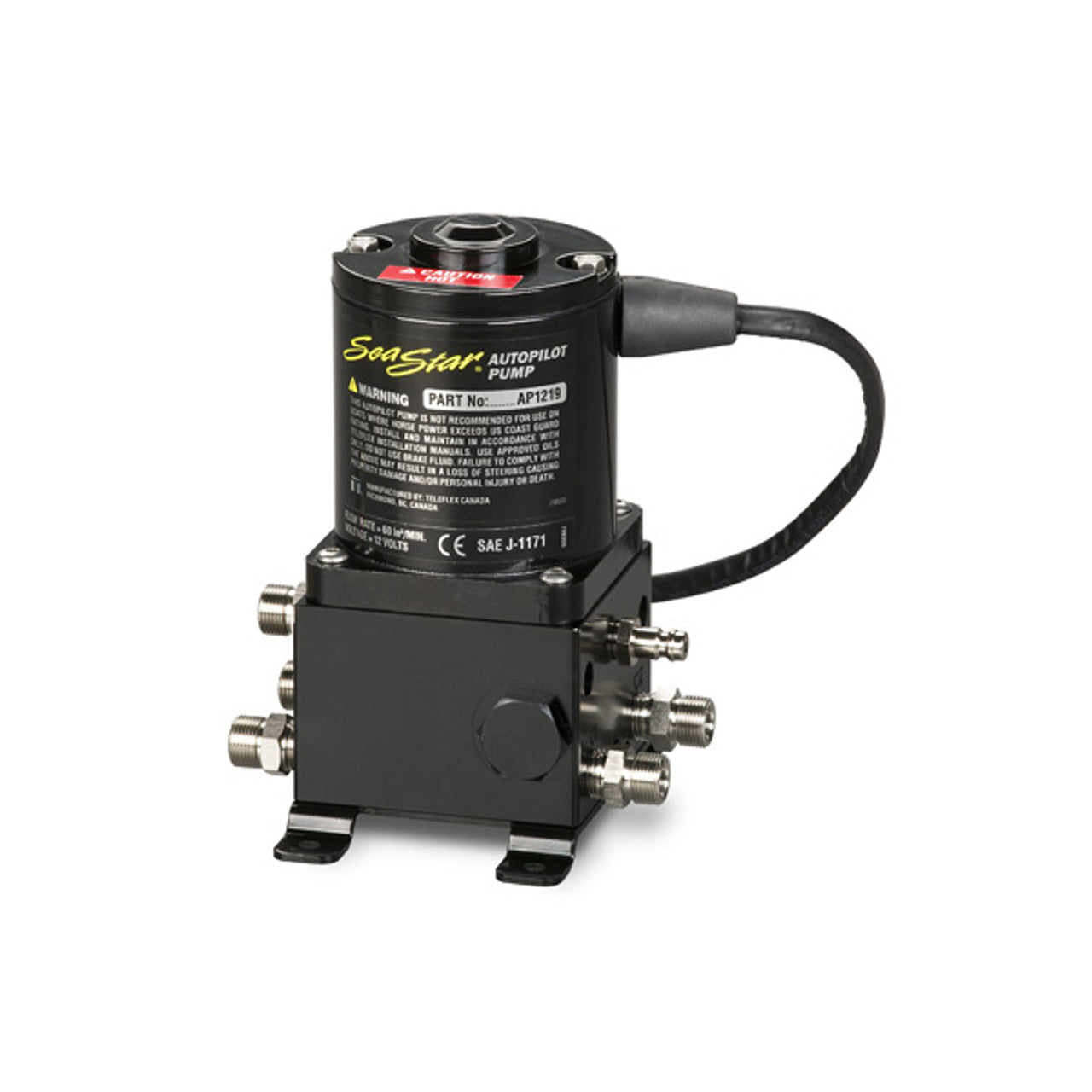

SeaStar AutoPilot Pump
SeaStar AutoPilot Pump
SeaStar AutoPilot Pump
The SeaStar Autopilot pump is a fixed flow, reversible type set that uses an internal hydraulic gear pump, producing very little vibration or noise. It is offered in 12 and 24 volt configurations, as well as two different pump sizes (type 1 & type 2). It can be used as a stand-alone pilot pump or can be mounted to a previously installed SeaStar Power Assist unit and can prevent the need to break into the hydraulic lines.
Features
- Long life DC Motor (i.e. long life brushes).
- Compact design.
- Simplified installation.
- Low power consumption.
- ABYC, CE and J1171 compliant.
- Superior corrosion resistance
- Quiet operation.
- Mounting bracket included.
- Stand alone or mounts to SeaStar Power Assist unit.
- 24" Wire Length | 12 Gauge AWG
- Replaces other 12 & 24 volt pumps.
| STAND ALONE PILOT PUMP (Can be retro fitted to a SPA unit) | |
| Type 1: 12V–60cu”/min | Part No. AP1219 |
| Type 2: 12V–100cu”/min | Part No. AP1233 |
| Type 1: 24V–60cu”/min | Part No. AP2419 |
| Type 2: 24V–100cu”/min | Part No. AP2433 |
| TECHNICAL | |
| Voltage | 12 or 24 Volts |
| Fittings | Compatible with standard SeaStar Hoses (HO51xx etc.) |
| Oil Compatibility | SeaStar Steering Fluid (MIL 5606) |
| Weight | 4.9 lbs (2.2kg) |
| Autopilot Pump Sizes | Type 1: 60 in3/min (no load) |
| Type 2: 100 in3/min (no load) | |
| Max Pressure | 1000psi |
| Typical Current Draw(Depending on application) | 12 or 24 Volts |
| 12V Type 2: 5 – 11 amps | |
| 24V Type 1: 2 – 4 amps | |
| 24V Type 2: 3 – 6 amps | |
